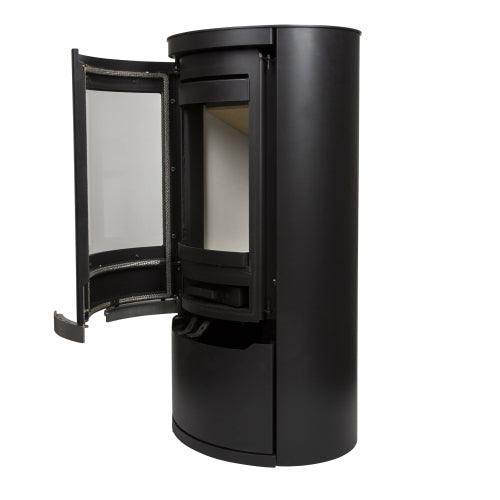

Ovale Low with Door 5kW Woodburning Stove

The Ovale Low with Door 5kW Woodburning Stove is a tall, sleek, and sophisticated design with a raised combustion chamber and ergonomically integrated stainless steel handles. Its round shape makes it an ultra-modern wood-burning stove, meticulously crafted down to the smallest detail. Utilizing a primary and secondary air control system, this stove not only serves as a stylish piece of furniture, but also provides effortless cleanliness, efficiency, and environmental friendliness with its "A+" energy rating and Smoke Control Area Exemption.

KEY FEATURES
■ Full steel construction of stove body and door
■ Lined with 30mm vermiculite panels
■ Installer-friendly 125mm outlet
■ 12mm decorative hearth compatible
■ Maximum wood length 250mm

SPECIFICATIONS

• Output: 5kW
• Low Height: 920mm
• Width: 472mm
• Depth: 362mm
• Weight: 85Kg
• Total Efficiency: 82.9%
• Mean CO2 Emission: 0.6%
• Flue Gas Temp: 264ºC
• Mean CnHm Emission (at 13% O2): 50 Nmg/m3
• Mean NOx Emission (at 13% O2): 80 Nmg/m3
• DIN Plus particulates (at 13% O2): 7 Nmg/m3
• Flue Size: 125mm
• Outlet: Top & Rear
• Outside Air: Included
• DISTANCE TO COMBUSTIBLES Insulated Flue:
• Back 150mm
• Sides 200mm
• DISTANCE TO COMBUSTIBLES Non-Insulated Flue:
• Back 250mm
• Sides 250mm
• DISTANCE TO NON-COMBUSTIBLES:
• Back 50mm
• Sides 75mm
• HEARTH PROJECTION:
• Front 400mm
• Sides 150mm
