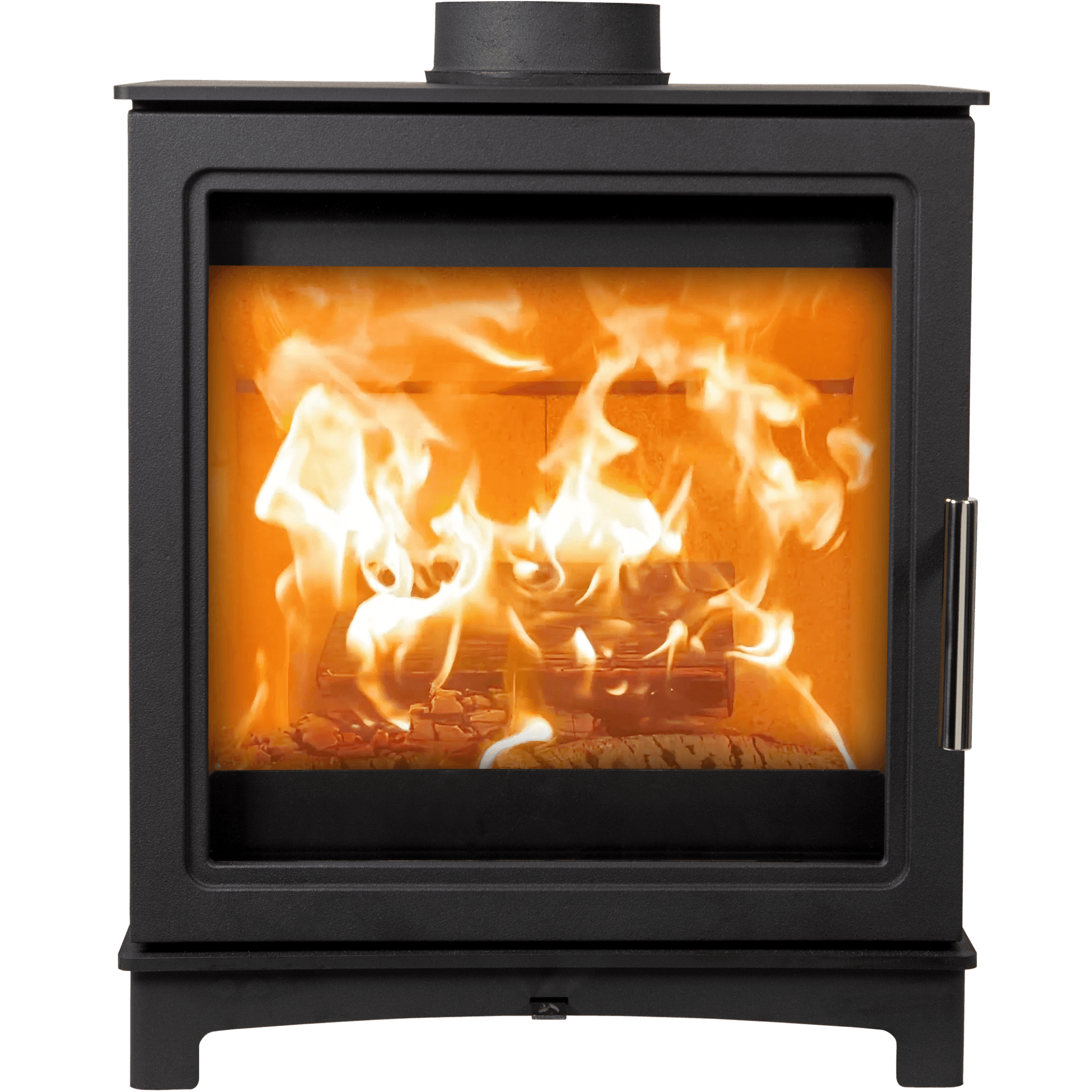

Grisedale Woodburning Stove - 5kW

The Grisdale Woodburning Stove with an output of 5kW is ideal for medium to large-sized rooms. This stove is ECODesign 2022 compliant and exempt from Smoke Control Area restrictions, making it 80.4% efficient and boasting an A+ energy rating with only 14% dust output.

Designed and manufactured in the UK, these stoves are the most efficient and environmentally friendly option available. The large panoramic window is kept clear by a powerful air wash system, providing a stunning display of the fire. With its ECO-Design certification, the Grisedale is perfect for any setting, whether it be a fireplace or standing free. The variable airflow and tertiary air system contribute to the stove's efficiency and ensure a clean viewing experience. By preheating air and injecting it into the gas path during primary combustion, the tertiary air system promotes a cleaner and more efficient fire.

KEY FEATURES

■ 5mm and 8mm steel seam welded stove body construction
■ Cast iron door
■ Lined with 30mm vermiculite panels
■ Installer-friendly 125mm outlet
■ Discreet, hidden levelling screws
■ 12mm decorative hearth compatible

SPECIFICATIONS

Width: 490mm
Height: 590mm
Depth: 332mm
Output 5kW
Efficiency: 80.40%
Dust: 14 Nmg/m³
Weight: 76Kg
Flue Size: 125mm
Outlet: Top & Rear
Outside Air: Optional

CO (at 13% O2): 0.1
Mean Flue Temp: 249°C
DIN Plus dust (at 13% O2): 14 Nmg/m3
Mean CnHm (at 13% O2): 79 Nmg/m3
Mean NOx (at 13% O2): 127 Nmg/m3

DISTANCE TO COMBUSTIBLES

Front Hearth: 800mm
At Side: 400mm
Behind: 250mm
Furniture: 1075mm
