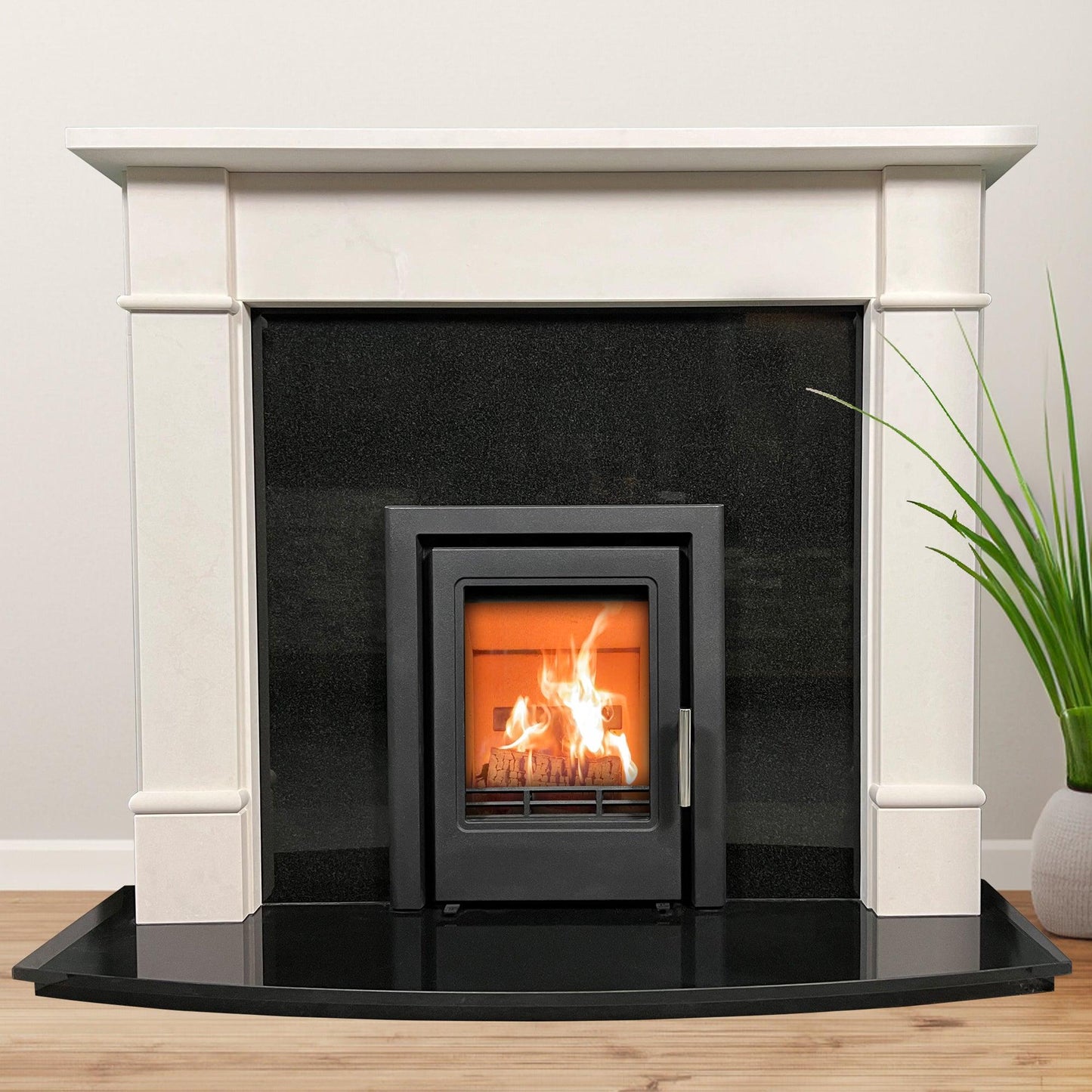

The Coniston 5kW Inset Multifuel Stove is a highly efficient choice, with an impressive 83.7% efficiency rate and A+ Energy Rating. Not only is it Eco-Design ready, but it also meets Smoke Control Area requirements. With only 12.10 mg of dust produced, this stove is environmentally-friendly. Its versatile design allows for both 3-sided and 4-sided installation options, making it a flexible choice for any existing fireplace chamber.
KEY FEATURES:
Steel body construction and cast iron door
Lined with 30mm vermiculite panels
Installer friendly 125mm outlet
3-sided and 4-sided options
12mm decorative hearth compatible
Specifications:

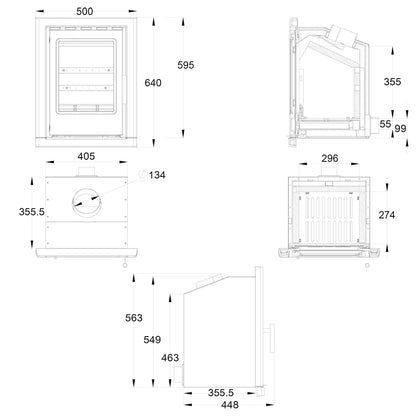

Maximum log length 270mm x 100mm width Weight 70KGS Dimensions (WxDxH mm) Four Sided 552 x 431 (Max Footprint excl Handle) x 683 Three Sided 552 x 431 (Max Footprint excl Handle) x 613 Inset 399 x 358 x 549 Flue size 125mm
WOOD LOGS
Total efficiency 83.7% Nominal heat output 5.0kW Mean CO2 emission 12.10% Mean flue gas temperature 258ºC Mean CnHm emission (at 13 % O2) 65 Nmg/m3 Mean NOx emission (at 13 % O2) 76 Nmg/m3 DIN Plus particulates (at 13 % O2) 22 Nmg/m3
MANUFACTURED SMOKELESS FUELS
Total efficiency 82.5% Nominal heat output 5.3 kW Mean CO2 emission 11.11% Mean flue gas temperature 258ºC Mean CnHm emission (at 13 % O2) 65 Nmg/m3 Mean NOx emission (at 13 % O2) 76 Nmg/m3 DIN Plus particulates (at 13 % O2) 39 Nmg/m3
